Signature

The signature data is transmitted via the request header X-UPA-SIGN.

Signature data rule

METHOD|URI|TIMESTAMP|REQUEST_ID|SIGN_PARAM

When the request parameters are empty, the PAYLOAD is empty, and the signature string ends with |.

Signature Data Rules Explanation

METHOD：API request method(GET/POST)

URI：API path（Example：/api/v1/customer/add）

TIMESTAMP：Request timestamp (milliseconds).
           Request timeout is 69 seconds.
           Must match the X-UPAY-TIMESTAMP request header.

REQUEST_ID：Unique request ID. Must match the X-UPAY-REQUESTID request header.

SIGN_PARAM：Signature parameters (refer to Signature Parameter Description)

Signature Parameter Description

1. Sort the request parameters by KEY in ascending order.

2. Concatenate them in key=value format.

3. Join multiple fields with &.

Example：

{
  "groupNo": "101680210001",
  "email": "[email protected]",
  "globalCode": "+1",
  "phone": "127897890",
  "givenName": "Demo given name",
  "lastName": "Demo last name",
  "company": "Demo company",
  "occupation": "Demo occupation",
  "position": "Demo position",
  "annualIncome": 100.5,
  "workYear": "1",
  "address": {
    "name": "Demo given name",
    "countryId": 12,
    "provinceId": 475,
    "postalCode": "94105",
    "address": "535 Mission St, Floor 12"
  },
  "remark": "This is sample data for adding customers"
}

Sorted data:

{
  "address": {
    "address": "535 Mission St, Floor 12",
    "countryId": 12,
    "name": "Demo given name",
    "postalCode": "94105",
    "provinceId": 475
  },
  "annualIncome": 100.5,
  "company": "Demo company",
  "email": "[email protected]",
  "givenName": "Demo given name",
  "globalCode": "+1",
  "groupNo": "101680210001",
  "lastName": "Demo last name",
  "occupation": "Demo occupation",
  "phone": "127897890",
  "position": "Demo position",
  "remark": "This is sample data for adding customers",
  "workYear": "1"
}

Data Participating in Signature:

address={"address":"535 Mission St, Floor 12","cityId":2001,"countryId":840,"name":"Alex Wilson","postalCode":"94105","provinceId":1001}&annualIncome=12.5&company=Open Commerce Inc&[email protected]&givenName=Alex&globalCode=+1&groupNo=GRP202603260001&lastName=Wilson&occupation=Software Engineer&phone=4155550123&position=Senior Engineer&remark=customer created from open api sandbox&workYear=8

Data Signature Method

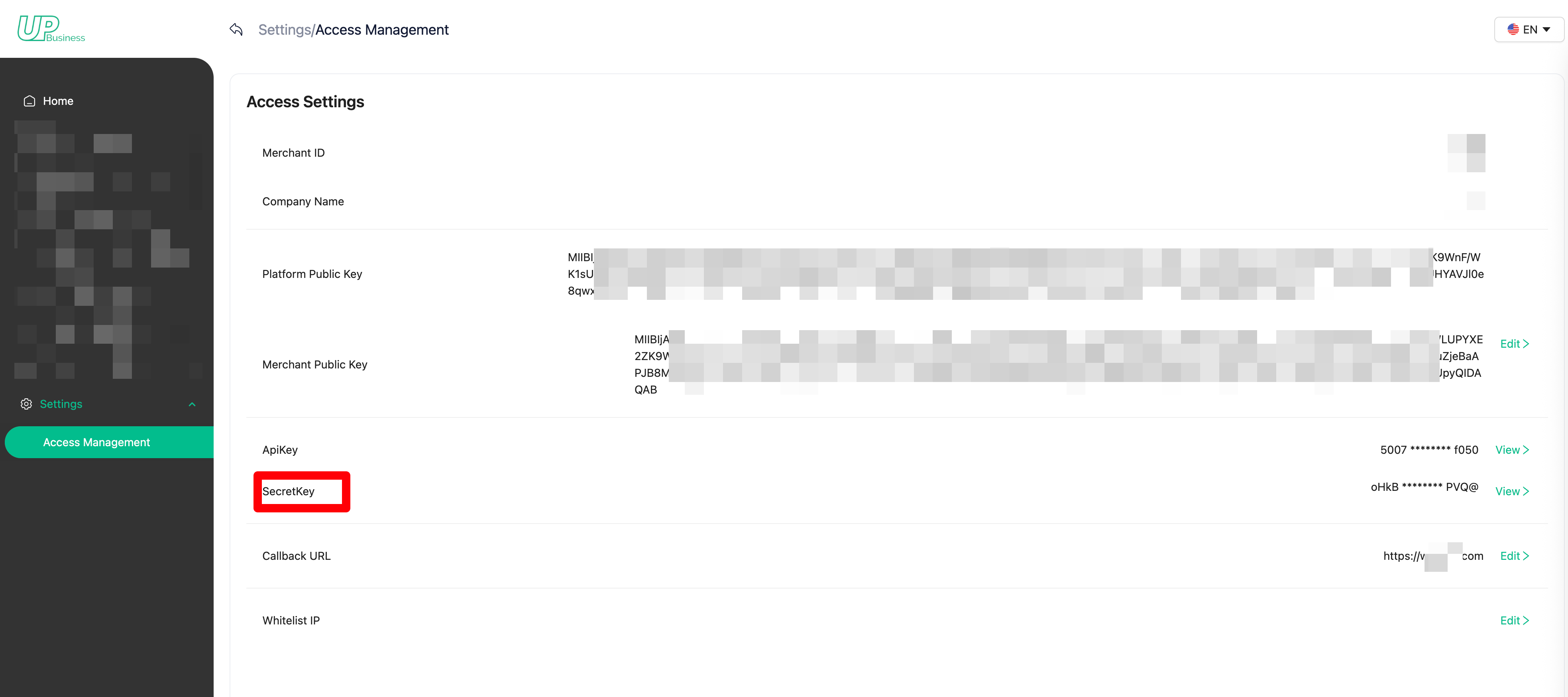

When signing, you need to use the Secretkey provided by UPay, which can be obtained from the merchant platform

1. Obtain the signature data.

2. Use the HMAC-SHA256 algorithm to calculate the hash value of the signature data.

3. Base64 encode the hash value to obtain the final signature.

Signature Example

Parameter	Example
SecretKey	g3)&~8P9S+ZhqO@G8b9Ate%xa5Jh-.E%
METHOD	POST
URI	/api/v1/customer/add
TIMESTAMP	1774573955994
REQUEST_ID	366dde77c57a4e7e988c074a21a4f04c
Signature Data	address={"address":"535 Mission St, Floor 12","countryId":12,"name":"Demo given name","postalCode":"94105","provinceId":475}&annualIncome=100.5&company=Demo company&email=[email protected] &givenName=Demo given name&globalCode=+1&groupNo=101680210001&lastName=Demo last name&occupation=Demo occupation&phone=127897890&position=Demo position&remark=This is sample data for adding customers&workYear=1

Signature Raw String

POST|/api/v1/customer/add|1774573955994|366dde77c57a4e7e988c074a21a4f04c|address={"address":"535 Mission St, Floor 12","countryId":12,"name":"Demo given name","postalCode":"94105","provinceId":475}&annualIncome=100.5&company=Demo company&[email protected]&givenName=Demo given name&globalCode=+1&groupNo=101680210001&lastName=Demo last name&occupation=Demo occupation&phone=127897890&position=Demo position&remark=This is sample data for adding customers&workYear=1

Signed Data

The signed value is transmitted via the request header X-UPA-SIGN.

pRbX0ikM/4j/E3tBxNOO/m3Hra+4d2/r+xtRTJ6N5pk=

Signature Sample Code

/**
  * Signature
  * @param data Signature data
  * @param secretKey Signature key
  * @throws AppServerException
*/
 public static String generateHmacSha256(String data, String secretKey) throws Exception {

        Mac mac = Mac.getInstance("HmacSHA256");

        byte[] keyBytes = secretKey.getBytes();
        SecretKeySpec signingKey = new SecretKeySpec(keyBytes, "HmacSHA256");

        mac.init(signingKey);

        byte[] rawHmac = mac.doFinal(data.getBytes());

        return Base64.getEncoder().encodeToString(rawHmac);
    }

import hmac
import hashlib
import base64

def generate_hmac_sha256(data: str, secret_key: str) -> str:
    """
    Generate an HMAC-SHA256 signature and return a Base64-encoded string

    Args:
        data: Data to be signed
        secretKey: Secret Key

    Returns:
        Base64-encoded HMAC-SHA256 signature
    """
    key_bytes = secretKey.encode('utf-8')
    data_bytes = data.encode('utf-8')


    raw_hmac = hmac.new(key_bytes, data_bytes, hashlib.sha256).digest()

    return base64.b64encode(raw_hmac).decode('utf-8')

Testing Website

https://www.devglan.com/online-tools/hmac-sha256-online

Data encryption/decryption

Encryption Process

Encryption uses two pairs of keys (public/private): one pair is the platform key, and the other pair is the merchant key.

Platform Key

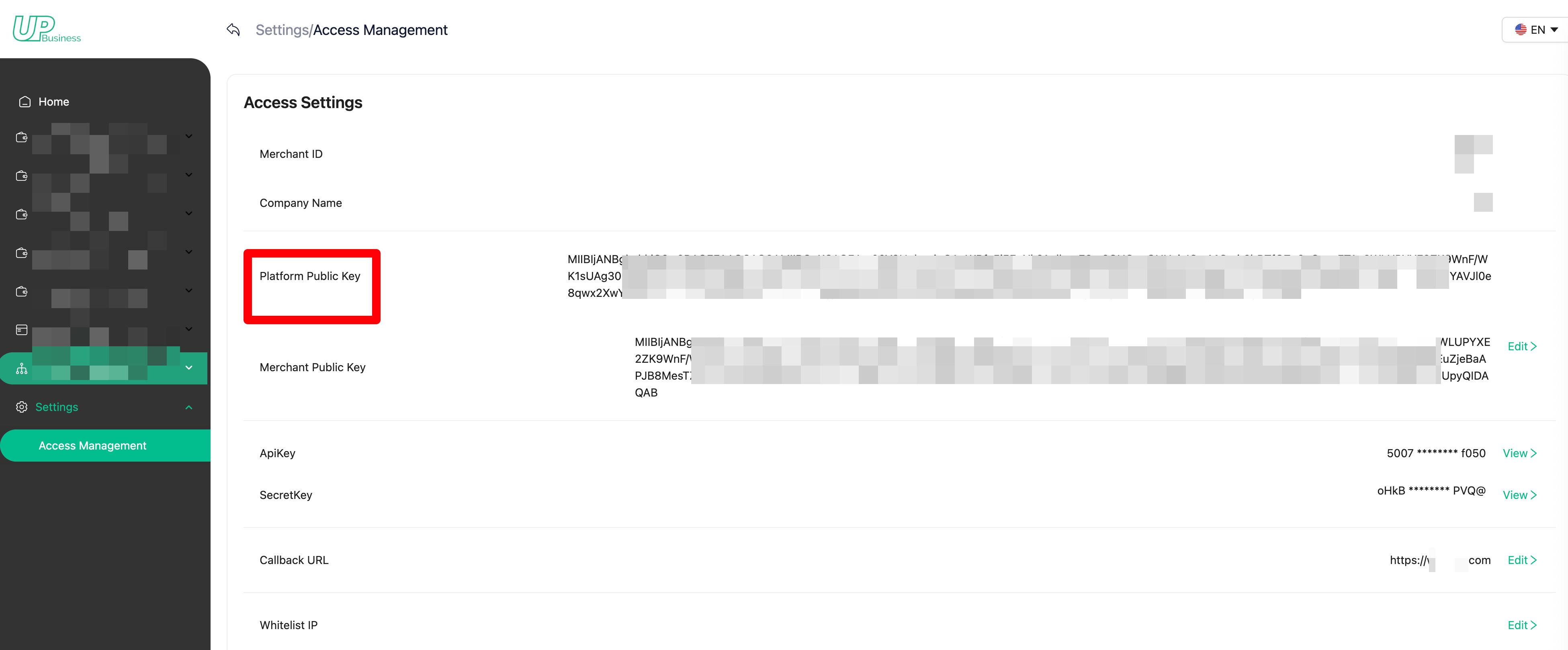

Platform Public Key: Used by merchants to encrypt request parameters when calling APIs.
Platform Private Key: Used by UPay to decrypt the parameters after receiving the API request, obtaining the original data.

Merchant Key

Generate Key Pair (Example using OpenSSL)

openssl genrsa -out private.pem 2048 && openssl rsa -in private.pem -pubout -out public.pem

Public Key Example

Private Key Example

Merchant public key

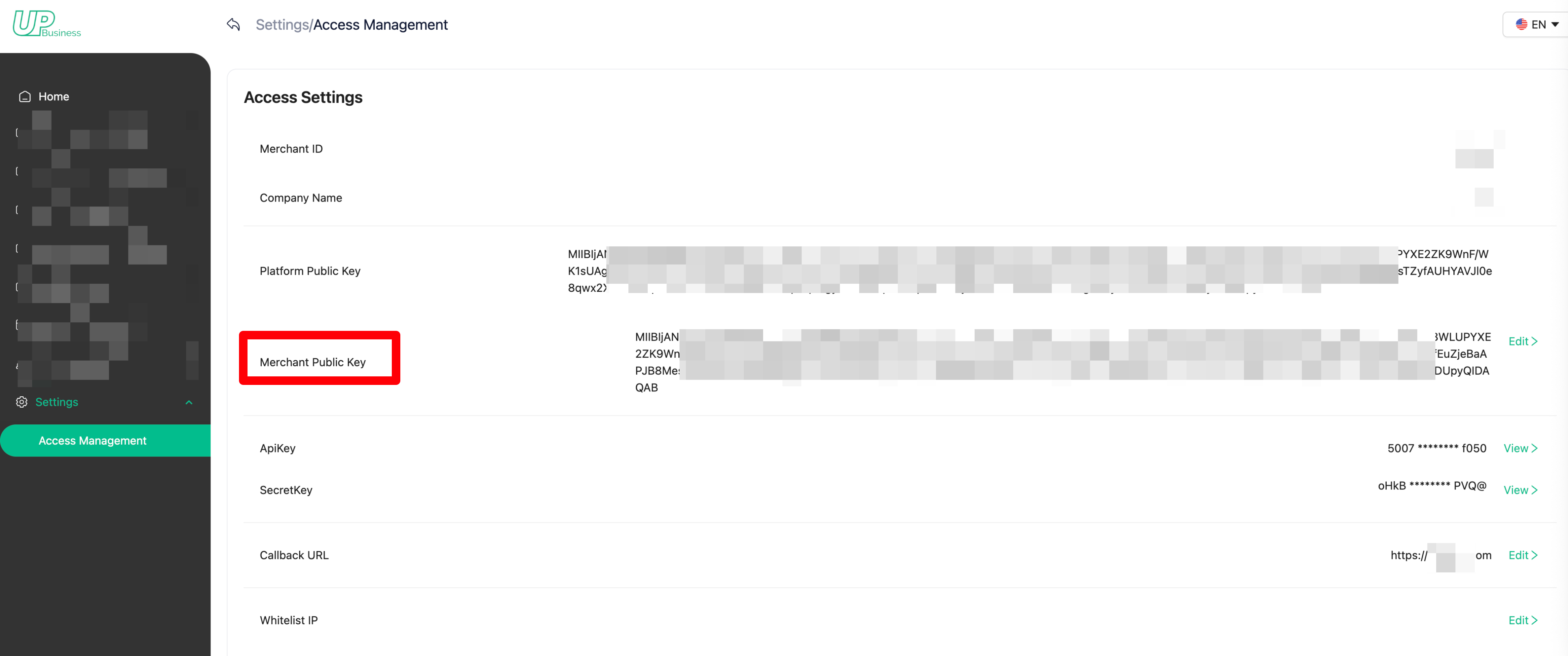

The merchant configures the generated public key to the merchant platform

If an API request is encrypted, the response data will definitely be encrypted. UPay will encrypt the response data using the merchant's public key.
Merchant private key: After obtaining the API response data, the merchant decrypts it using the merchant private key to retrieve the original response data

Encryption Algorithm

{
  "alg": "RSA-OAEP-256",
  "enc": "A128GCM",
  "kid": kid,
  "typ": "JOSE",
  "zip": "DEF"
}

Parameter function and description

Parameter	Algorithm	Remarks
alg	RSA-OAEP-256	Key management algorithm
enc	A128GCM	Encryption algorithm
typ	JOSE	Encryption type
zip	DEF	Increases transmission speed, reduces transmission content size
kid	sha256(public_pem).hexdigest()	Perform hash fingerprint signature on the public key For generating a kid, refer to

KID generation example code

  /**
     * Generate KID
     * @param publicKey RSA Public Key
     */
    public String generateKid(RSAPublicKey publicKey) throws NoSuchAlgorithmException {
        byte[] publicKeyBytes = publicKey.getEncoded();
        MessageDigest digest = MessageDigest.getInstance("SHA-256");
        byte[] hash = digest.digest(publicKeyBytes);
        return Base64.getUrlEncoder().withoutPadding().encodeToString(hash).toUpperCase();
    }

import hashlib
import base64
from cryptography.hazmat.primitives import serialization
from cryptography.hazmat.primitives.asymmetric import rsa

def generate_kid(public_key):
    """
    Generate KID (Key ID) from RSA public key

    Args:
        public_key: It can be an RSAPublicKey object, a PEM string, or bytes

    Returns:
        str: Base64URL encoded SHA-256 hash value (uppercase)
    """
    if isinstance(public_key, str):
        public_key_bytes = public_key.encode('utf-8')
    elif isinstance(public_key, bytes):
        public_key_bytes = public_key
    elif hasattr(public_key, 'public_bytes'):
        public_key_bytes = public_key.public_bytes(
            encoding=serialization.Encoding.DER,
            format=serialization.PublicFormat.SubjectPublicKeyInfo
        )
    else:
        raise ValueError("Unsupported public key type")

    digest = hashlib.sha256(public_key_bytes)
    hash_bytes = digest.digest()

    kid = base64.urlsafe_b64encode(hash_bytes).decode('utf-8').rstrip('=').upper()

    return kid

Encryption/Decryption Example Data

Encryption Example Data

Platform Public Key

KID(Generated using the merchant's public key) is
```
Y7UBL8TJQJY2YR9CDAM6UNXPKPLSM6QD4GMSA3MEPCQ
```

Original Request Payload

{
  "groupNo": "101680210001",
  "email": "[email protected]",
  "globalCode": "+1",
  "phone": "127897890",
  "givenName": "Demo given name",
  "lastName": "Demo last name",
  "company": "Demo company",
  "occupation": "Demo occupation",
  "position": "Demo position",
  "annualIncome": 100.5,
  "workYear": "1",
  "address": {
    "name": "Demo given name",
    "countryId": 12,
    "provinceId": 475,
    "postalCode": "94105",
    "address": "535 Mission St, Floor 12"
  },
  "remark": "This is sample data for adding customers"
}

Request Payload
The data in payload is the original request payload encrypted with the platform public key.

{
    "payload": "eyJ6aXAiOiJERUYiLCJraWQiOiJZN1VCTDhUSlFKWTJZUjlDREFNNlVOWFBLUExTTTZRRDRHTVNBM01FUENRIiwidHlwIjoiSk9TRSIsImVuYyI6IkExMjhHQ00iLCJhbGciOiJSU0EtT0FFUC0yNTYifQ.iThR8f9aBxnvq8PR-ta-AkD6w-5USqrCrTkISbz8ovTurgCmHasM0NmmlV5N8_Kn5qxJWCqIVd3EkmU9nkjsiO5uLSHPxL_CLmQD1gV79m1AxC41GMpHxGtiXkg-LUCwxE2TM-yLa5xKCjNJRUFPRShkObIq1rWiz_HIppYbw853AIa9PS9vt2p0LWpfthQ5UBaiCbHI5i2pIzaTAff3I8spgz2kJaZamnGEPH3v93rqpv2e2ICL0aYt6rp0wsAIe4dHR1tPwdqQKQA1VFo1VMSNhfxQmJqLZ7WsEJTh-zFO82Og2SYNp_Kop6lsSsPkoIo62p-qC9dgNU75zWe_5w.pVaqC8cS3mgKZ1z7.25Dz8A5LmYMqP_ujf20ZcVSdIf4etmd7Ws2BW6Dd1LvYigkXtEat4VrOhHyJEJEj4ksBuyQRS-uNrYy75MdZAkPSYC9xw4bpgQAgjYoZAurvX8Yy6mTlRV5IS4VcLTP3b7rsMVZOohYdWwVwl35yqGRv-5u6NRiFOKx0jyIvje0sLhae9dicJXrPe7xRaMLcKUCklpSAYQs8X6dk_ZJ7WgEkdhO_JOwyGLu7AtjCnvXRRAQtH9jM0ioXOrCad1d99bsZyuJ5ndF_54z3Dbiv4XPHKX4Z8Rm2Uhs_T84nOEXDwUP0ZUD6XLTgYj685o3qHIfLSmdgmgC-MinFvWYWFCasEIGLS8R7hv4gNPH_X3ulvRZg8kJsfpdaHRr_.lQsBYAPQAWf3AdOraThn5w"
}

Decryption Example Data

Original Response Data

{
    "code": 0,
    "data": {
        "payload": "eyJ6aXAiOiJERUYiLCJraWQiOiI3MzlTTFlCVUZNTVZWTFlIRktKSkIyN0EyTEJWWFhPVUpEU19FT0tXSjVVIiwidHlwIjoiSk9TRSIsImVuYyI6IkExMjhHQ00iLCJhbGciOiJSU0EtT0FFUC0yNTYifQ.ZIpTCVNg8G8IZKdvDOolnRr49oZZjO1WtFAtM3iW8yLy16KZQI8Ete_iksoHF4m8BCXcV5VIe6i2rv-8xHCFKXCk_rl3MwaM1MXPZL7Fm0hN_sZRYEbdWC5kGzIVl8t5mOnwsIIctPgvIa7ZQoLj4fNcMcXXdSpXIm2xtvxDSAeQUXnaP6pgP0-3Y0PG_ULYFDAxiQHYAp-EN5GpPIqDLdIAdyjYmdIoyEDcBrMfu0sbc1O7XZ6TMr0kK5r--CiHdsl36czPoQhDXsP1L4Bmbo0CsRNRLGcwSmZH8xD43BX4OOTubF4TTBDjx08hnE7wxjtElCxhvT2ibg7To9jVyA.zVwjezyC0K3FbJ_J.sm8AzVy7OjAhB0k3HMc.9MQzaH0aX_I4JEYzFrN1aw"
    },
    "msg": "Success",
    "success": true,
    "ts": 1774589644
}

Merchant Private Key

Result of decrypting the payload in the original response data using the merchant's private key
```
101680110004
```

Encryption/Decryption Sample Code

import com.nimbusds.jose.*;
import com.nimbusds.jose.crypto.RSADecrypter;
import com.nimbusds.jose.crypto.RSAEncrypter;

import java.security.KeyFactory;
import java.security.MessageDigest;
import java.security.NoSuchAlgorithmException;
import java.security.interfaces.RSAPrivateKey;
import java.security.interfaces.RSAPublicKey;
import java.security.spec.PKCS8EncodedKeySpec;
import java.security.spec.X509EncodedKeySpec;
import java.util.Base64;

public class JWECrypto {

    private static final JWEAlgorithm JWE_ALG = JWEAlgorithm.RSA_OAEP_256;
    private static final EncryptionMethod ENC_METHOD = EncryptionMethod.A128GCM;

    private RSAPublicKey publicKey;
    private RSAPrivateKey privateKey;

    public JWECrypto(String publicKeyPEM , String privateKeyPEM) throws Exception {
        if (publicKeyPEM != null) {
            this.publicKey = loadPublicKey(publicKeyPEM);
        }
        if (privateKeyPEM != null) {
            this.privateKey = loadPrivateKey(privateKeyPEM);
        }
    }

    /**
     * Encryption
     */
    public String encrypt(String payload) throws Exception {
        String kid = generateKid(publicKey);
        JWEHeader header = new JWEHeader.Builder(JWE_ALG , ENC_METHOD)
                .type(JOSEObjectType.JOSE)
                .keyID(kid)
                .compressionAlgorithm(CompressionAlgorithm.DEF)
                .build();
        JWEObject jweObject = new JWEObject(header , new Payload(payload));
        RSAEncrypter rsaEncrypter = new RSAEncrypter(publicKey);
        jweObject.encrypt(rsaEncrypter);
        return jweObject.serialize();
    }

    /**
     * Decryption
     */
    public String decrypt(String jweString) throws Exception {
        JWEObject jweObject = JWEObject.parse(jweString);
        RSADecrypter rsaDecrypter = new RSADecrypter(privateKey);
        jweObject.decrypt(rsaDecrypter);
        return jweObject.getPayload().toString();
    }

    private RSAPublicKey loadPublicKey(String publicKeyPEM) throws Exception {
        String publicKeyPEMFormatted = publicKeyPEM.replace("-----BEGIN PUBLIC KEY-----" , "")
                .replace("-----END PUBLIC KEY-----" , "")
                .replaceAll("\\s" , "");

        byte[] encoded = Base64.getDecoder().decode(publicKeyPEMFormatted);
        KeyFactory keyFactory = KeyFactory.getInstance("RSA");
        X509EncodedKeySpec keySpec = new X509EncodedKeySpec(encoded);
        return (RSAPublicKey) keyFactory.generatePublic(keySpec);
    }

    private RSAPrivateKey loadPrivateKey(String privateKeyPEM) throws Exception {
        String privateKeyPEMFormatted = privateKeyPEM.replace("-----BEGIN PRIVATE KEY-----" , "")
                .replace("-----END PRIVATE KEY-----" , "")
                .replaceAll("\\s" , "");

        byte[] encoded = Base64.getDecoder().decode(privateKeyPEMFormatted);
        KeyFactory keyFactory = KeyFactory.getInstance("RSA");
        PKCS8EncodedKeySpec keySpec = new PKCS8EncodedKeySpec(encoded);
        return (RSAPrivateKey) keyFactory.generatePrivate(keySpec);
    }

    /**
     * Generated KID
     * @param publicKey
     */
    public String generateKid(RSAPublicKey publicKey) throws NoSuchAlgorithmException {
        byte[] publicKeyBytes = publicKey.getEncoded();
        MessageDigest digest = MessageDigest.getInstance("SHA-256");
        byte[] hash = digest.digest(publicKeyBytes);
        return Base64.getUrlEncoder().withoutPadding().encodeToString(hash).toUpperCase();
    }

}

import base64
import hashlib
from cryptography.hazmat.primitives import serialization
from cryptography.hazmat.primitives.asymmetric import rsa, padding
from cryptography.hazmat.primitives.ciphers import Cipher, algorithms, modes
from cryptography.hazmat.backends import default_backend
from jwcrypto import jwe, jwk
from jwcrypto.common import json_encode
import json


class JWECrypto:
    JWE_ALG = "RSA-OAEP-256"
    ENC_METHOD = "A128GCM"

    def __init__(self, public_key_pem=None, private_key_pem=None):
        """
        Initialize JWE encryption/decryption handler

        Args:
            public_key_pem: Public key string in PEM format
            private_key_pem: Private key string in PEM format
        """
        self.public_key = None
        self.private_key = None

        if public_key_pem:
            self.public_key = self._load_public_key(public_key_pem)
        if private_key_pem:
            self.private_key = self._load_private_key(private_key_pem)

    def _load_public_key(self, public_key_pem):
        """Load public key"""
        try:
            # Clean PEM format
            public_key_pem = public_key_pem.strip()
            if not public_key_pem.startswith('-----BEGIN PUBLIC KEY-----'):
                # If it's already in plain base64 format, add PEM header and footer
                public_key_pem = self._format_pem(public_key_pem, "PUBLIC KEY")

            # Load public key
            public_key = serialization.load_pem_public_key(
                public_key_pem.encode('utf-8'),
                backend=default_backend()
            )
            return public_key
        except Exception as e:
            raise Exception(f"Failed to load public key: {e}")

    def _load_private_key(self, private_key_pem):
        """Load private key"""
        try:
            # Clean PEM format
            private_key_pem = private_key_pem.strip()
            if not private_key_pem.startswith('-----BEGIN PRIVATE KEY-----'):
                # If it's already in plain base64 format, add PEM header and footer
                private_key_pem = self._format_pem(private_key_pem, "PRIVATE KEY")

            # Load private key
            private_key = serialization.load_pem_private_key(
                private_key_pem.encode('utf-8'),
                password=None,
                backend=default_backend()
            )
            return private_key
        except Exception as e:
            raise Exception(f"Failed to load private key: {e}")

    def _format_pem(self, key_str, key_type):
        """Format PEM string"""
        # Remove all whitespace characters
        key_str = ''.join(key_str.split())
        # Add PEM header and footer
        pem = f"-----BEGIN {key_type}-----\n"
        # Wrap every 64 characters
        for i in range(0, len(key_str), 64):
            pem += key_str[i:i+64] + "\n"
        pem += f"-----END {key_type}-----"
        return pem

    def _create_jwk_from_public_key(self):
        """Create JWK object from public key"""
        # Export public key to PEM format
        public_pem = self.public_key.public_bytes(
            encoding=serialization.Encoding.PEM,
            format=serialization.PublicFormat.SubjectPublicKeyInfo
        )

        # Create JWK
        jwk_obj = jwk.JWK.from_pem(public_pem)
        return jwk_obj

    def _create_jwk_from_private_key(self):
        """Create JWK object from private key"""
        # Export private key to PEM format
        private_pem = self.private_key.private_bytes(
            encoding=serialization.Encoding.PEM,
            format=serialization.PrivateFormat.PKCS8,
            encryption_algorithm=serialization.NoEncryption()
        )

        # Create JWK
        jwk_obj = jwk.JWK.from_pem(private_pem)
        return jwk_obj

    def encrypt(self, payload):
        """
        Encrypt data

        Args:
            payload: String to encrypt

        Returns:
            JWE string
        """
        try:
            # Generate KID
            kid = self.generate_kid(self.public_key)

            # Create JWK
            public_jwk = self._create_jwk_from_public_key()

            # Create JWE object
            jwe_token = jwe.JWE(
                json.dumps(payload) if isinstance(payload, dict) else payload,
                json_encode({
                    "alg": self.JWE_ALG,
                    "enc": self.ENC_METHOD,
                    "kid": kid,
                    "typ": "JOSE",
                    "zip": "DEF"  # Compression algorithm
                })
            )

            # Encrypt
            jwe_token.add_recipient(public_jwk)
            encrypted = jwe_token.serialize(compact=True)

            return encrypted

        except Exception as e:
            raise Exception(f"Encryption failed: {e}")

    def decrypt(self, jwe_string):
        """
        Decrypt data

        Args:
            jwe_string: JWE string

        Returns:
            Decrypted string
        """
        try:
            # Create JWK
            private_jwk = self._create_jwk_from_private_key()

            # Parse and decrypt JWE
            jwe_token = jwe.JWE()
            jwe_token.deserialize(jwe_string, key=private_jwk)

            # Get payload
            payload = jwe_token.payload
            return payload.decode('utf-8') if isinstance(payload, bytes) else str(payload)

        except Exception as e:
            raise Exception(f"Decryption failed: {e}")

    def generate_kid(self, public_key):
        """
        Generate KID (Key ID)

        Args:
            public_key: RSA public key object

        Returns:
            KID string
        """
        # Get DER encoding of public key
        public_der = public_key.public_bytes(
            encoding=serialization.Encoding.DER,
            format=serialization.PublicFormat.SubjectPublicKeyInfo
        )

        # Calculate SHA-256 hash
        sha256_hash = hashlib.sha256(public_der).digest()

        # Base64 URL encoding (without padding)
        kid = base64.urlsafe_b64encode(sha256_hash).decode('utf-8').rstrip('=')

        return kid.upper()


# Usage example
if __name__ == "__main__":
    # Example keys (please use your own keys)
    # Note: The keys here are for demonstration only. Use real key pairs in production.

    # Generate test key pair
    from cryptography.hazmat.primitives.asymmetric import rsa
    from cryptography.hazmat.primitives import serialization

    # Generate RSA key pair
    private_key_obj = rsa.generate_private_key(
        public_exponent=65537,
        key_size=2048,
        backend=default_backend()
    )
    public_key_obj = private_key_obj.public_key()

    # Export to PEM format
    private_pem = private_key_obj.private_bytes(
        encoding=serialization.Encoding.PEM,
        format=serialization.PrivateFormat.PKCS8,
        encryption_algorithm=serialization.NoEncryption()
    ).decode('utf-8')

    public_pem = public_key_obj.public_bytes(
        encoding=serialization.Encoding.PEM,
        format=serialization.PublicFormat.SubjectPublicKeyInfo
    ).decode('utf-8')

    print("Generated Public Key PEM:")
    print(public_pem)
    print("\nGenerated Private Key PEM:")
    print(private_pem)

    # Create encryption/decryption handler
    jwe_crypto = JWECrypto(public_pem, private_pem)

    # Test encryption and decryption
    original_payload = "Hello, this is a test message!"
    print(f"\nOriginal data: {original_payload}")

    # Encrypt
    encrypted = jwe_crypto.encrypt(original_payload)
    print(f"Encrypted result: {encrypted}")

    # Decrypt
    decrypted = jwe_crypto.decrypt(encrypted)
    print(f"Decrypted result: {decrypted}")

    # Verify
    assert original_payload == decrypted, "Encryption/decryption verification failed"
    print("\nEncryption/decryption verification successful!")

Testing Website

https://dinochiesa.github.io/jwt/
